Alarm Annunciator - Datmel Technology Sdn. Bhd.

Real-time monitoring to ensure optimal operation and safety

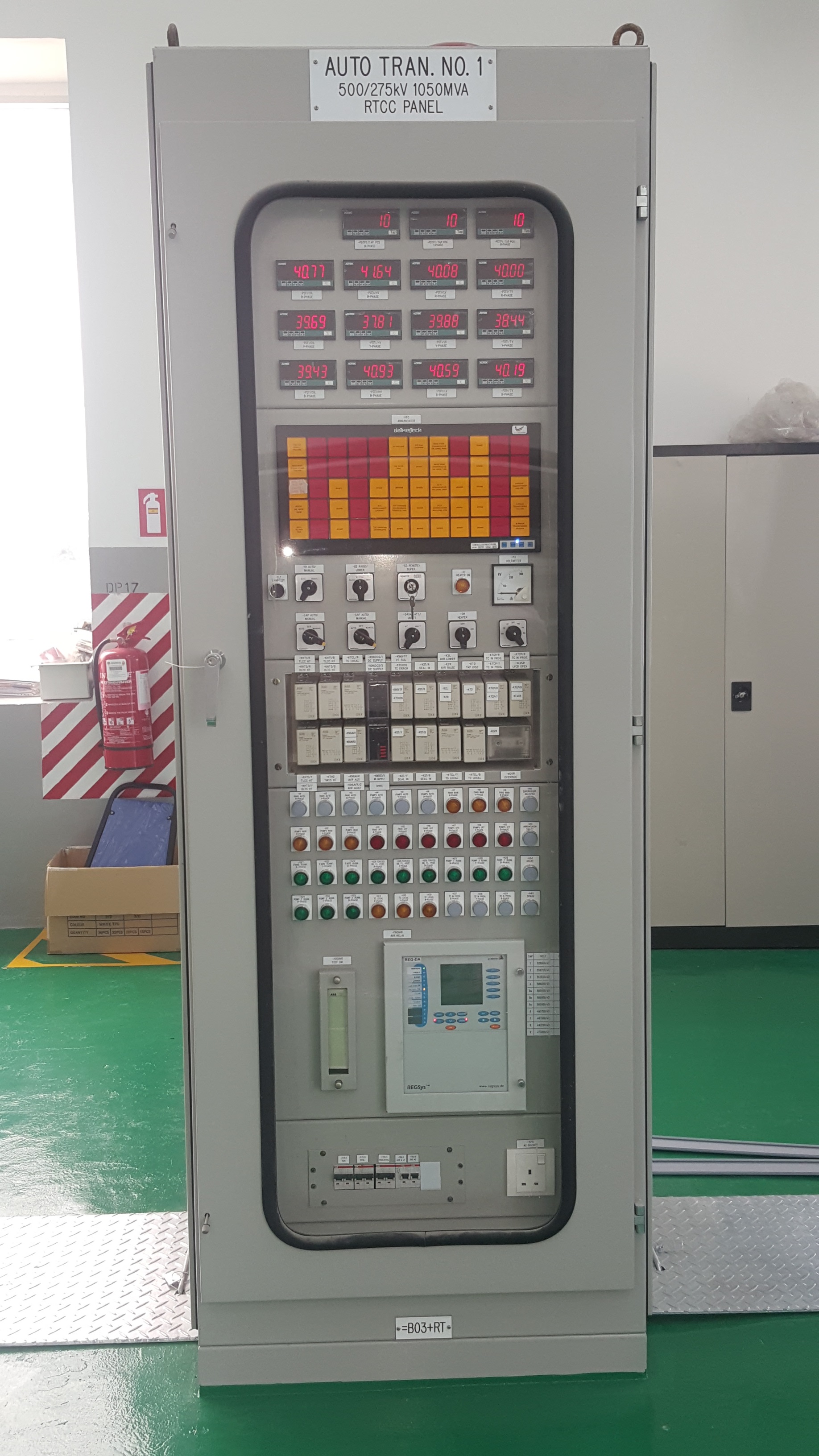

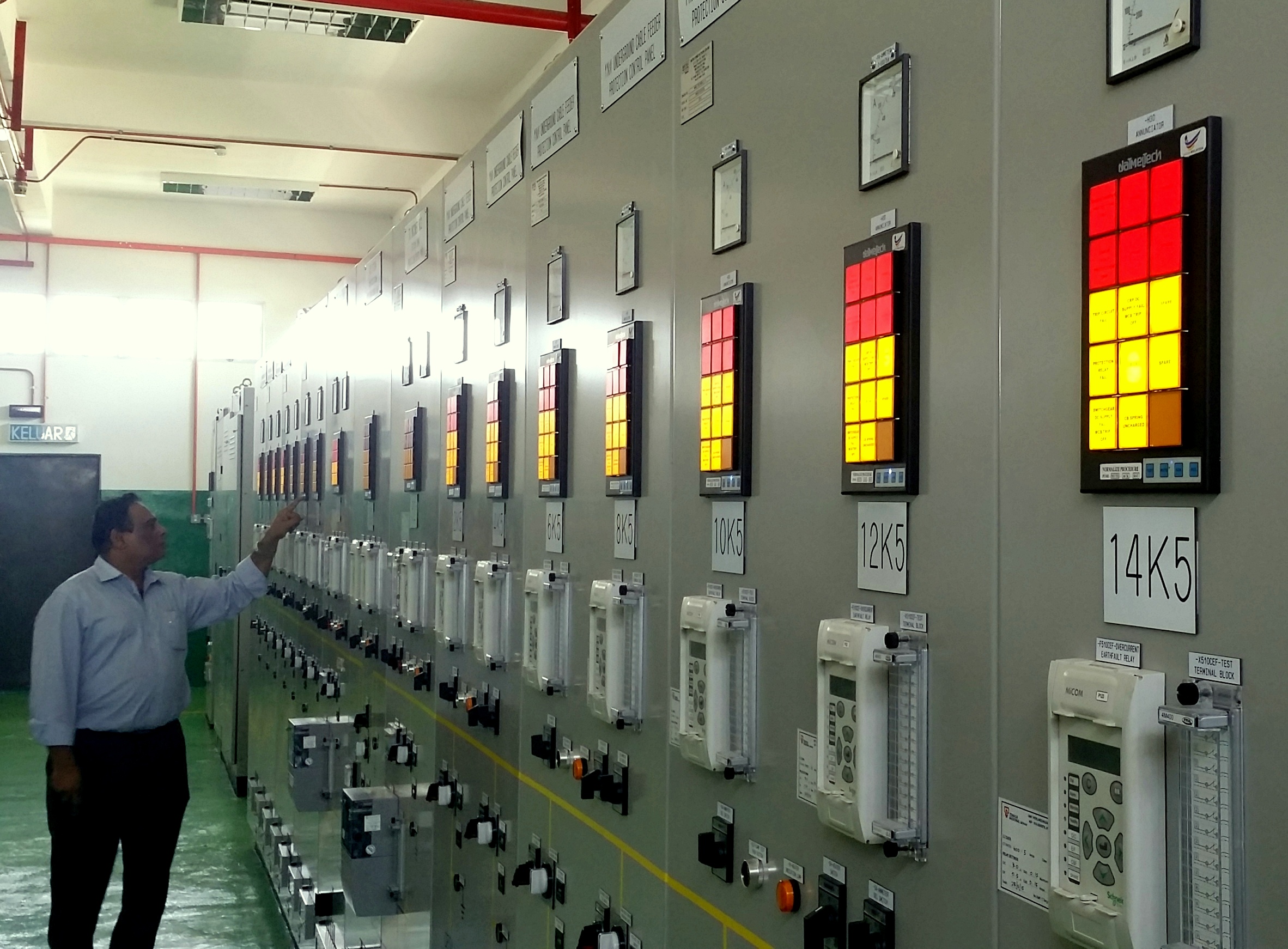

It is capable of being installed in different sectors such as electricity generator station for monitoring the operations and is used as indicators for abnormal events.

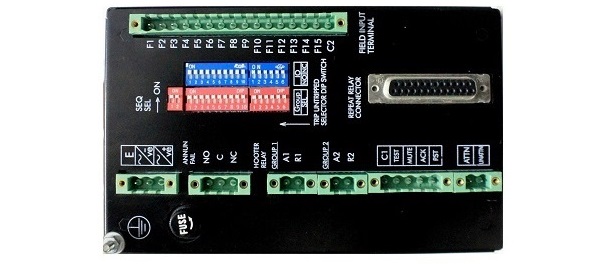

High Speed Low Power Microcontroller with Pluggable Technology for all terminals

Microprocessor includes High Speed Low Power 28/40 pin 8 Bit C MOS Flash EEPROM Microcontroller operating with a wide range of operating voltage from 2.0V to 5.5V, a current rating of 25mA, energy saving sleep mode with watchdog timer (WDT) and chip RC oscillator. Pluggable Technology is adapted to make all parts serviceable, which include the Terminal Block.

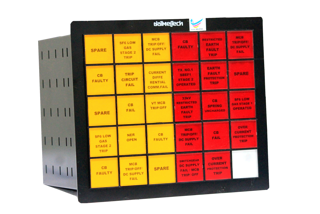

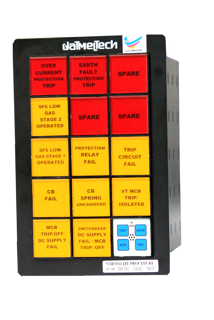

Customized to Customer's Requirements.

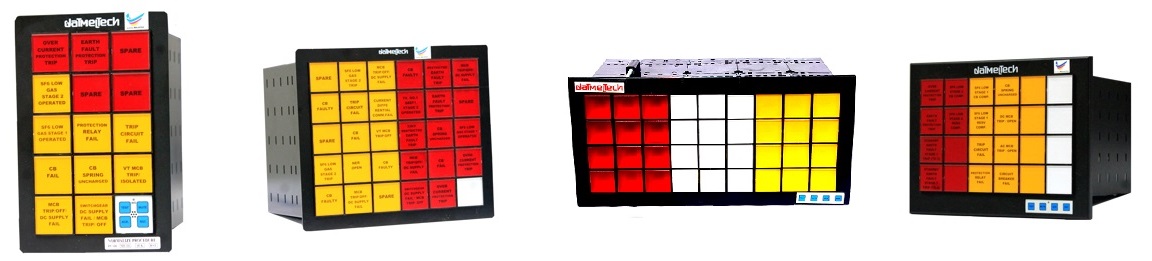

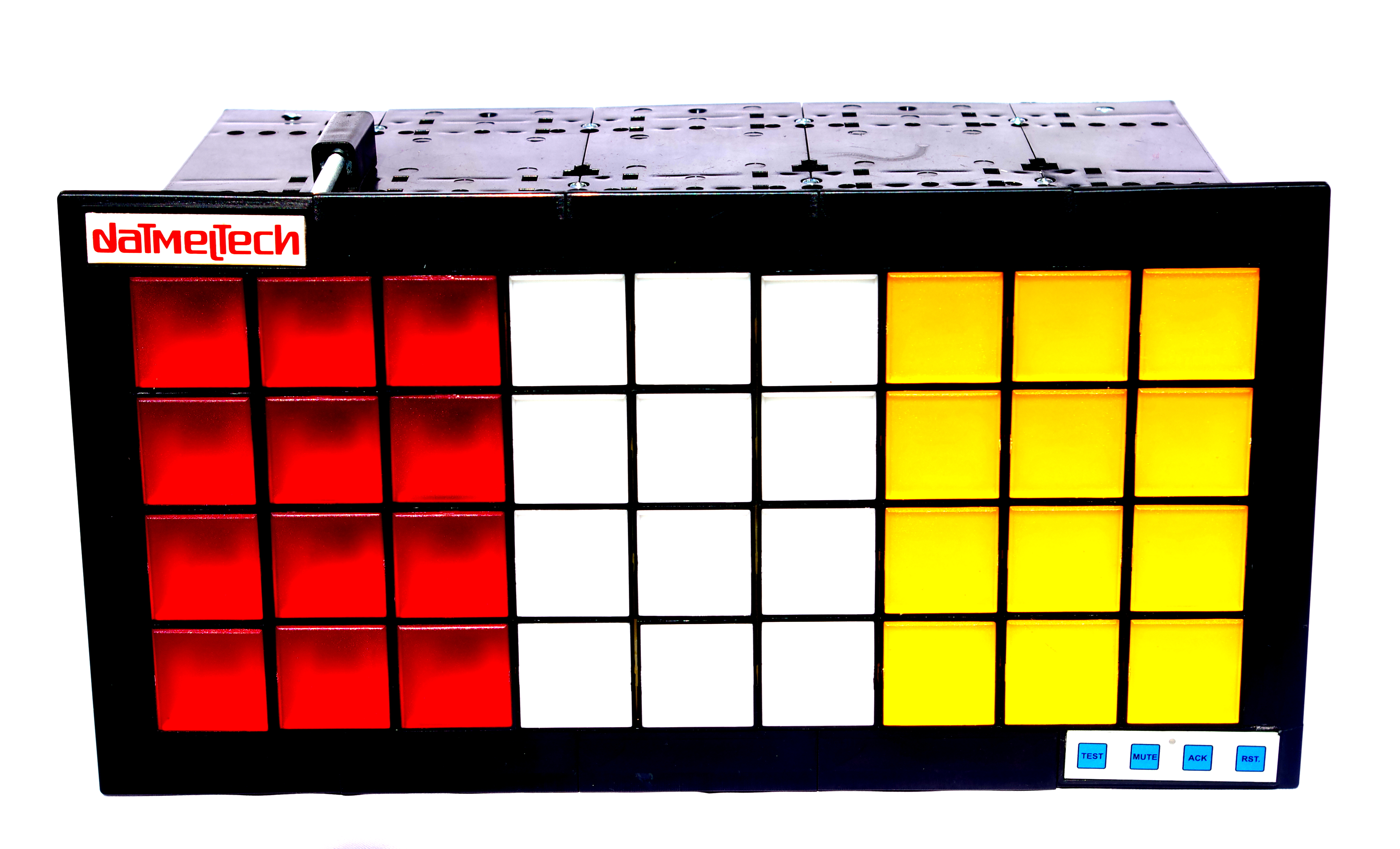

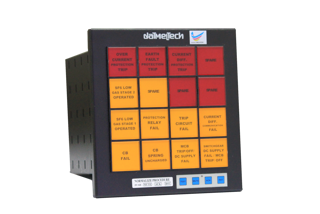

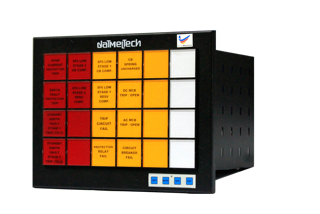

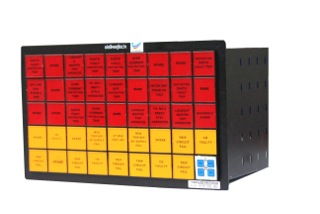

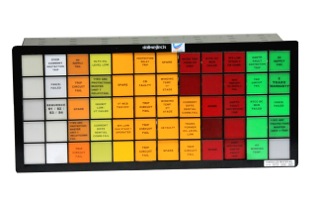

These units are manufactured in a range of model to suit the client's application. The user has the option to choose the desired specifications on individual models according to their own requirements. DatmelTech Annunciator comes with standard integral models of minimum 12 windows in multiple of 2 windows, 15 windows in multiples of 2 windows and 16 windows in multiples of 2 windows to suit customers' needs with or without Built-in Push Button, Buzzer, Group Selection Trip / Non Trip and Self-Surveillance Watchdog.

Model Number	The First number indicates the numbers of Active Window
14W WPB	14 Windows With Inbuilt Push Button and Watchdog
30W WOPB	30 Windows Without Inbuilt Push Button and Watchdog
/ BB	With In Built Buzzer
/ RR	With Repeat Relay Facilities
/ WG	With Grouping Selection Dip Switch
/ IO	With IO Selection Dip Switch

Model Number

The First number indicates the numbers of Active Window

14W WPB

14 Windows With Inbuilt Push Button and Watchdog

30W WOPB

30 Windows Without Inbuilt Push Button and Watchdog

/ BB

With In Built Buzzer

/ RR

With Repeat Relay Facilities

/ WG

With Grouping Selection Dip Switch

/ IO

With IO Selection Dip Switch

Voltage Supply	Number of Windows	Overall Dimension Height (H) × Width (W) × Depth (D) mm	Cutout Dimension Height (H) × Width (W) mm
>12/24 VDC >48/60 VDC >110 VDC	10	201.3 × 95.0 × 70.0	181.0 × 73.0
20	201.3 × 165.0 × 70.0	181.0 × 143.0
30	201.3 × 233.0 × 70.0	181.0 × 211.0
40	201.3 × 278.0 × 70.0	181.0 × 279.0

Voltage Supply

Number of Windows

Overall Dimension Height (H) × Width (W) × Depth (D) mm

Cutout Dimension Height (H) × Width (W) mm

>12/24 VDC
>48/60 VDC
>110 VDC

201.3 × 95.0 × 70.0

181.0 × 73.0

201.3 × 165.0 × 70.0

181.0 × 143.0

201.3 × 233.0 × 70.0

181.0 × 211.0

201.3 × 278.0 × 70.0

181.0 × 279.0

Name	Value / Description	Unit
Supply Voltage	Wide Band Dual Voltage AC/DC
90 - 270 + 10% - 15% 25 - 60 + 10% - 15%	VAC/VDC VAC/VDC
Frequency	50/60	Hz
Power Consumption	Sleep Mode @ 240VAC	53	mA
Sleep Mode @ 110VDC	100	mA
Output Interrogation Voltage	+12	VDC
Annunciation Failure Relay	OPTO Isolated
Contact Rating (Resistive)	5	A
240	VDC
Response Time	15 ± 10	msec

Name

Value / Description

Unit

Supply Voltage

Wide Band Dual Voltage AC/DC

90 - 270 + 10% - 15%
25 - 60 + 10% - 15%

VAC/VDC
VAC/VDC

Frequency

50/60

Power Consumption

Sleep Mode @ 240VAC

Sleep Mode @ 110VDC

100

Output Interrogation Voltage

+12

VDC

Annunciation Failure Relay

OPTO Isolated

Contact Rating (Resistive)

240

VDC

Response Time

15 ± 10

msec

Name	Value / Description	Unit
Isolation	OPTO Coupler with filter protection against surge 2kV, 60Hz, 1min in compliance IEC 255.4
Surge Immunity	IEC 51000-4-5:1995
Relative Humidity	0 to 95 (RH consideration)	%
Storage Temperature	-20 to 80	°C
Operating Temperature	-20 to 60	°C
Protection Class	Facia (Window)	IP41
Enclosure	IP30
Compliance Immunity	IEC 60255-5:2000 IEC 60068-2-31:1982 IEC 60068-2-32:1982 IEC 60068-2-38:2009

Name

Value / Description

Unit

Isolation

OPTO Coupler with filter protection against surge 2kV, 60Hz, 1min in compliance IEC 255.4

Surge Immunity

IEC 51000-4-5:1995

Relative Humidity

0 to 95 (RH consideration)

Storage Temperature

-20 to 80

°C

Operating Temperature

-20 to 60

°C

Protection Class

Facia (Window)

IP41

Enclosure

IP30

Compliance Immunity

IEC 60255-5:2000
IEC 60068-2-31:1982
IEC 60068-2-32:1982
IEC 60068-2-38:2009

Name	Decscription
Push Button Capsule	Membrane type with Watchdog Green LED
Control Push Buttons for Test, mute, Acknowledge and Reset function

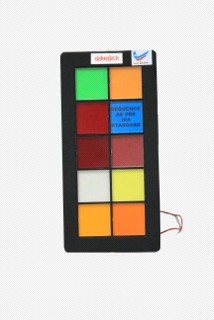

Window Color	White
Red
Yellow
Blue
Green
Amber

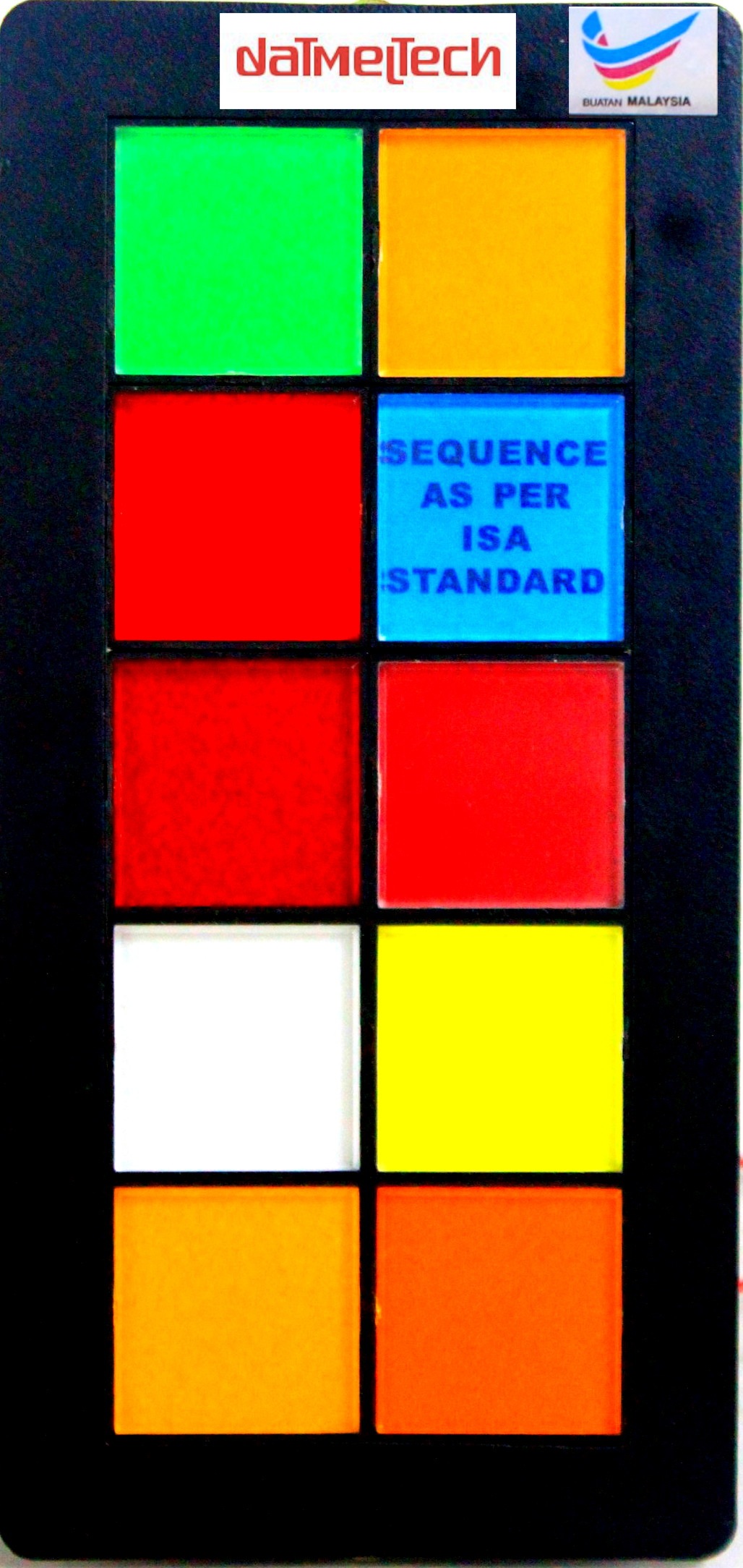

Window Size	32 × 32 mm (Individual Replaceable)
Legends	Laser printed on film / Tracing paper, Low relief engraving
Inscription	5 lines, 4mm letter size with 55 Alphabets
Flash Rate	Fast: 60 Flashes per min
Slow: 60 Flashes per min
Control	Attended / Unattended
Annunciation Failure Contact

Name

Decscription

Push Button Capsule

Membrane type with Watchdog Green LED

Control Push Buttons for Test, mute, Acknowledge and Reset function

Window Color

White

Red

Yellow

Blue

Green

Amber
